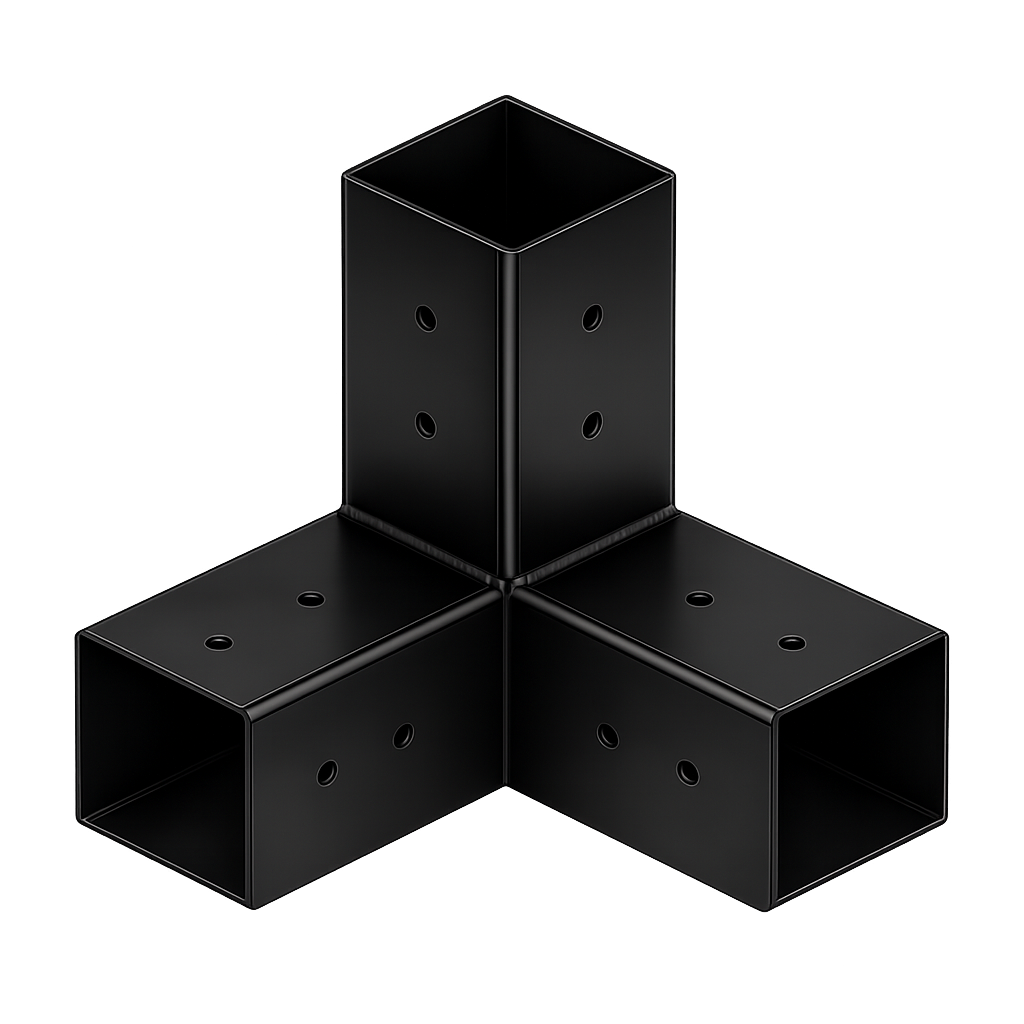

KELAR | Corner Bracket, 3-Way, Powder-Coated, Heavy Duty Hardware for Outdoor Wood Pergolas, Gazebos, Sheds

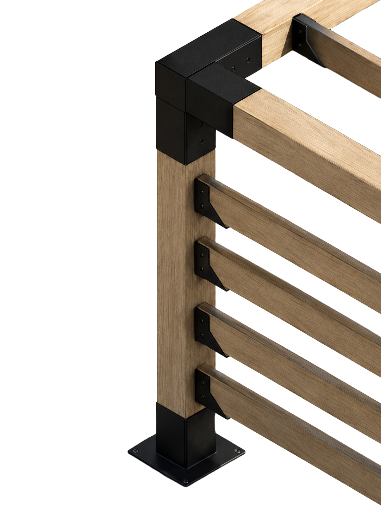

Build strong, precise, and long-lasting outdoor structures with the KELAR 3-Way Corner Bracket—a professional-grade solution for pergolas, gazebos, sheds, and custom timber structures. Engineered for accuracy and strength, this bracket allows you to securely connect three beams at a clean 90° corner, simplifying assembly while ensuring structural integrity.

Manufactured from 3 mm thick steel, it offers exceptional durability and rigidity, surpassing standard lightweight alternatives. Each bracket is laser-cut and fully welded to maintain consistent quality and strength throughout. The powder-coated finish provides reliable protection against outdoor conditions while delivering a refined, uniform appearance. The design remains minimal and unobtrusive, with no visible branding.

Available in 4x4 and 8x8 size options, the bracket accommodates a range of structural needs. You can also select from a variety of RAL colors, allowing seamless integration with your project’s aesthetic.

Carefully considered details enhance both performance and usability. Fastening holes are positioned along the inner edges for a clean exterior finish, while the elimination of unnecessary holes helps preserve the integrity of the wood and reduces the risk of splitting. The bracket also supports additional mounting options for integrating sun or wind protection elements at corner points.

Key Features

• 3 mm thick steel construction for high structural strength

• Designed for accurate 3-beam 90° corner connections

• Available in 4x4 and 8x8 sizes

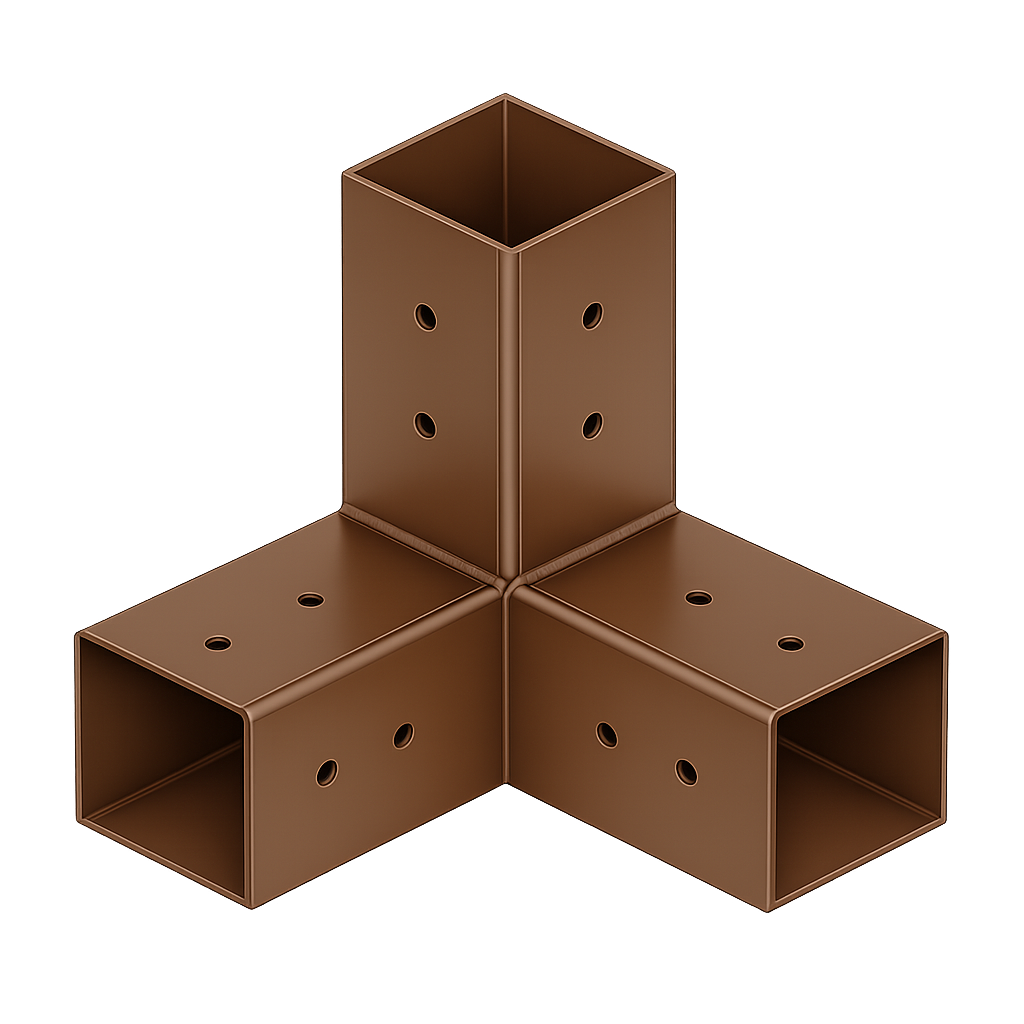

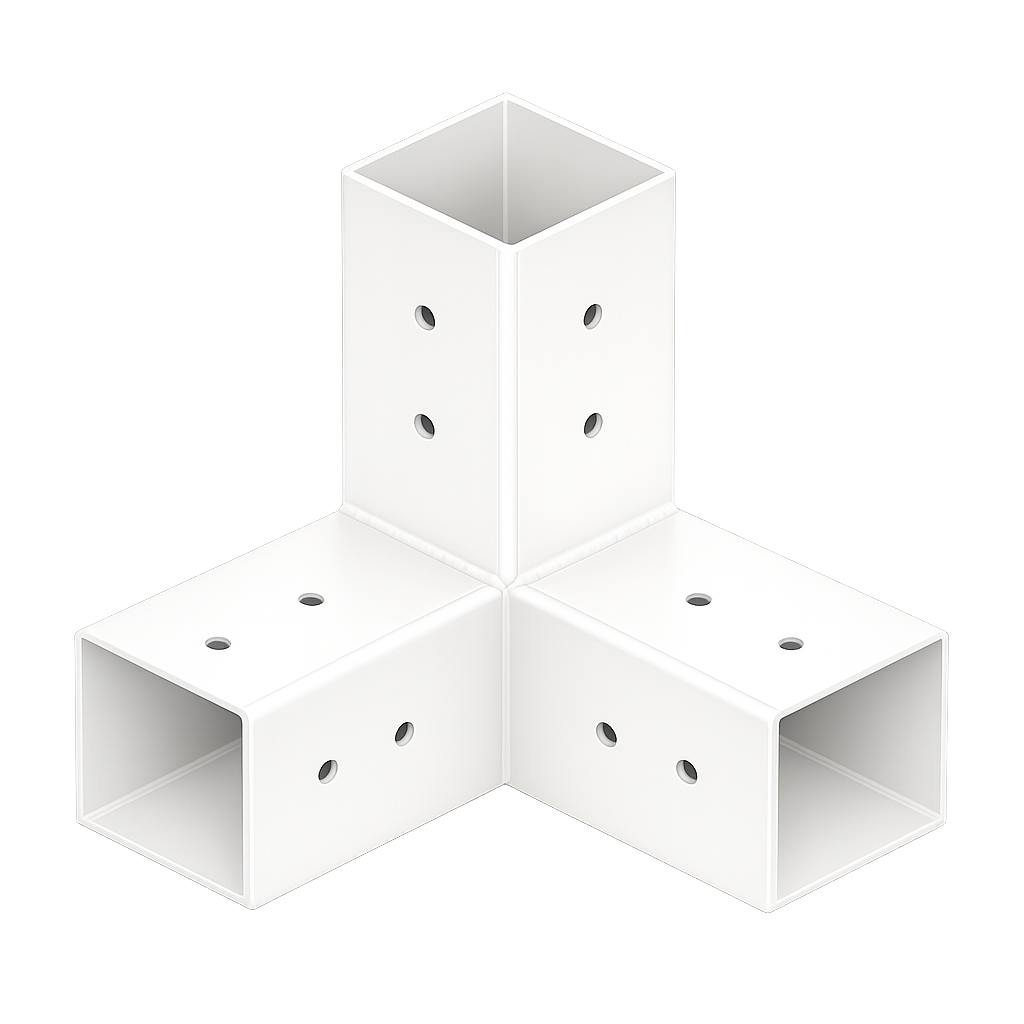

• Powder-coated in a choice of RAL colors for durability and design flexibility

• Fully welded, laser-cut construction for precision and reliability

• Minimalist appearance with no visible logos

• Optimized fastening layout to protect wood from damage

Specifications

• Sizes: 4x4 and 8x8 options available

• Material thickness: 3 mm steel

• Hole diameter: 8 mm

• Finish: Powder-coated (RAL color of your choice)

• Weight: varies depending on size

Included

• 1 × 3-way corner bracket

Not Included

• Wood

• Screws

Wood Fit Guidance
Designed for standard dimensional lumber, the bracket provides a secure and stable fit. Due to natural variations in timber, minor adjustments such as light sanding may be required to achieve optimal insertion. It is advisable to test the fit prior to installation and mark the insertion depth to ensure consistent and proper assembly.

The KELAR 3-Way Corner Bracket offers a balanced combination of strength, precision, and design flexibility—making it a dependable choice for high-quality outdoor construction.
